Helium Independence is Here

Products

Magnets For

NMR Spectroscopy

7T-61

Center Field: 7.04 T

Bore Diameter: 215 mm +/- 0.5 mm

Bore Length: 54 cm

End to Center: 30 cm

Homogeneity: < 3 ppm pk-pk over 2.5 cm DSV

Drift: < 0.1 ppm/hour

5 gauss line: Axial < 100 cm, Radial < 75 cm

Magnets For

Preclinical MRI

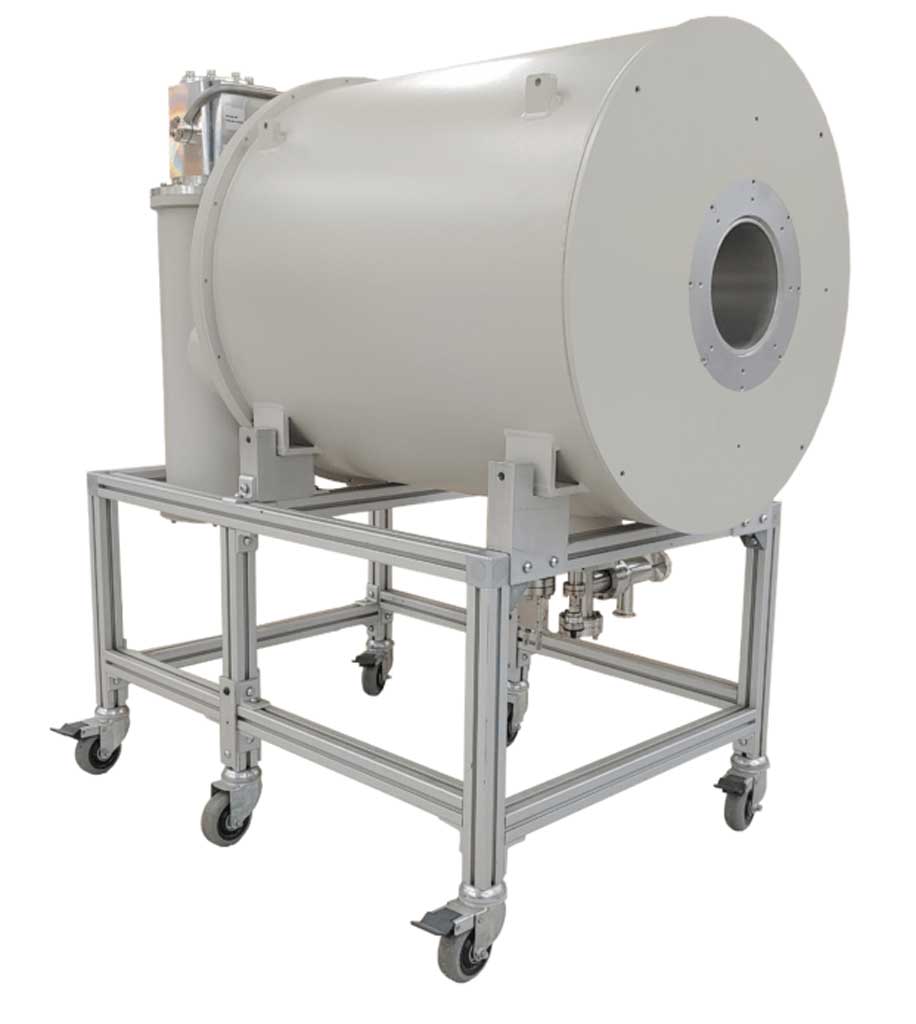

3T-170

Center Field: 3 T
Bore Diameter: 170 mm
Bore Length: 60 cm
End to Center: 30 cm
Homogeneity: < 2 ppm pk-pk over 7 cm DSV
Drift: < 0.1 ppm/hour

5 gauss line: Axial < 80 cm, Radial < 60 cm

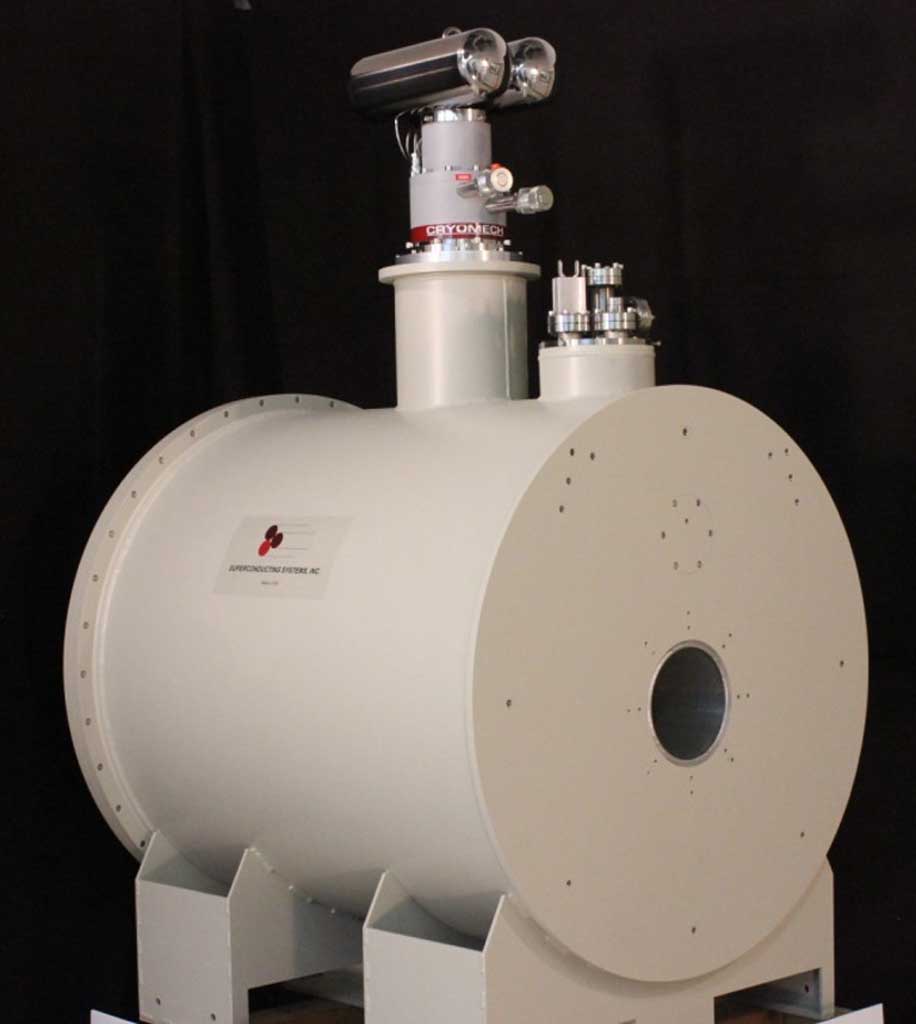

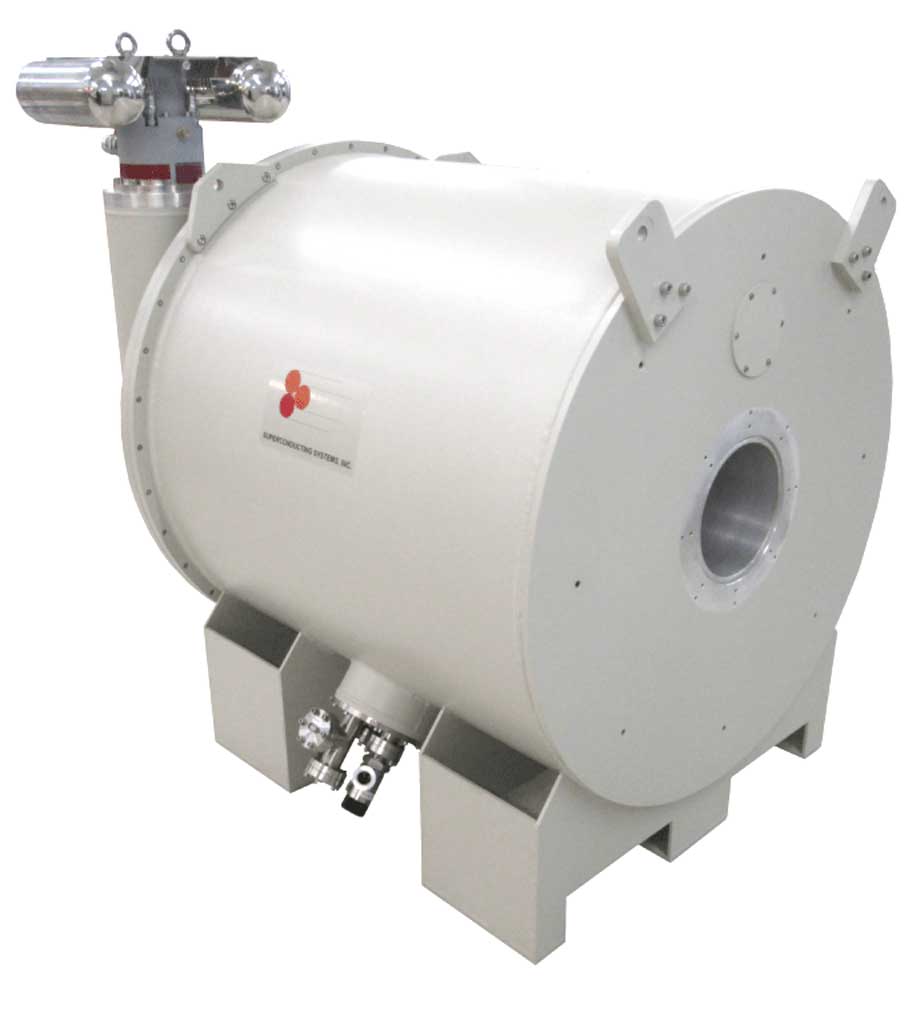

7T-170

Center Field: 7.04 T
Bore Diameter: 170 mm

Bore Length: 75 cm

End to Center: 35 cm

Homogeneity: < 2 ppm pk-pk over 7 cm DSV
Drift: < 0.1 ppm/hour
5 gauss line: Axial < 190 cm Radial < 160 cm

7T-215

Center Field: 7 T

Bore Diameter: 215 mm +/- 0.5 mm

Bore Length: 100 cm

End to Center: 50 cm

Homogeneity: < 1.5 ppm pk-pk over 7.5 cm DSV

Drift: < 0.1 ppm/hour

5 gauss line: Axial Axial < 170 cm Radial < 120 cm

Magnets For

Scientific Applications

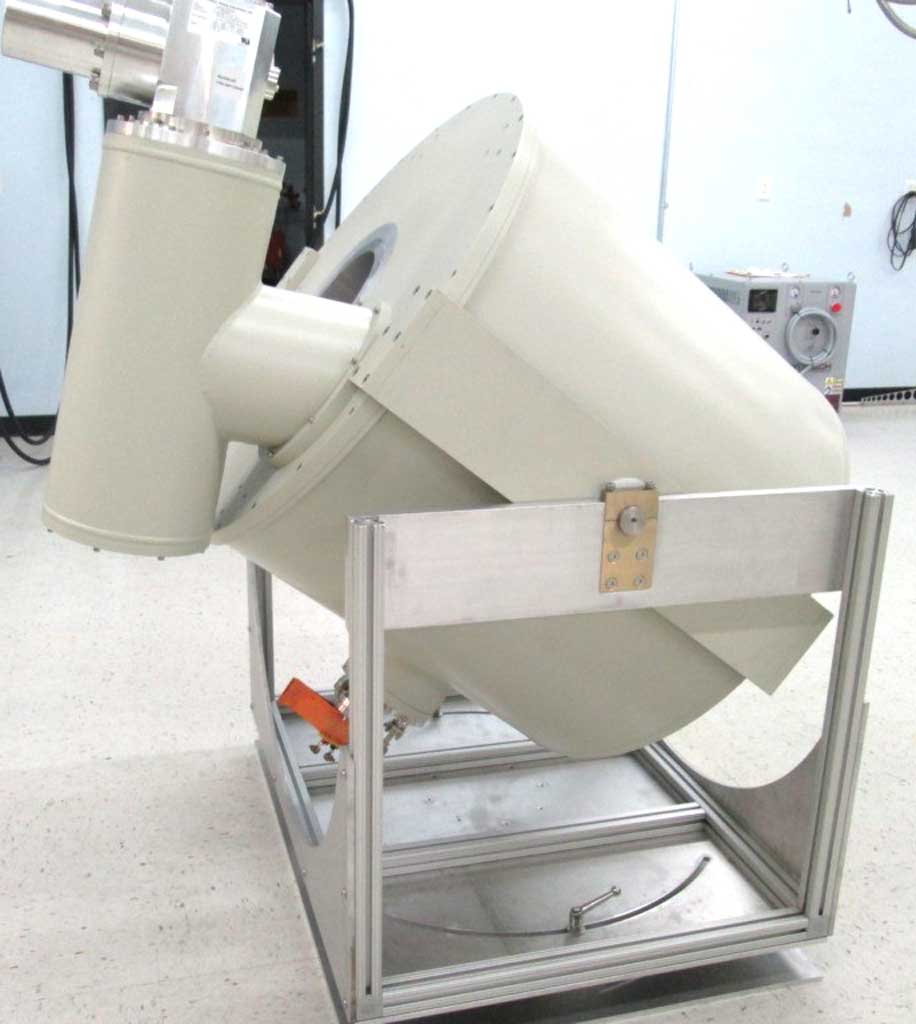

Rotatable and Tiltable MRI Magnet

Center Field: 3 T

Bore Diameter: 215 mm

End to Center: 33.5 cm

Homogeneity: 2 ppm pk-pk over 2.5 cm DSV
Drift: 0.1 ppm/hour
5 gauss line: Axial 100 cm, Radial 100 cm

Multimode Rotatable Split Magnet

Operating in Variable Mode

Bore Diameter: 50 mm

Bore Length: 160 cm

Split Gap: 20 cm

Operating in Homogenous Mode

Variable Central Field: .5-4 T

FoV: 5 cm dia. by 20cm long
Homogeneity: < 1%
Operating in Gradient Mode
Field at the center: B(0) = 0 T
Field gradient dB/dZ = T/m

Magnets For

Human Imaging Research

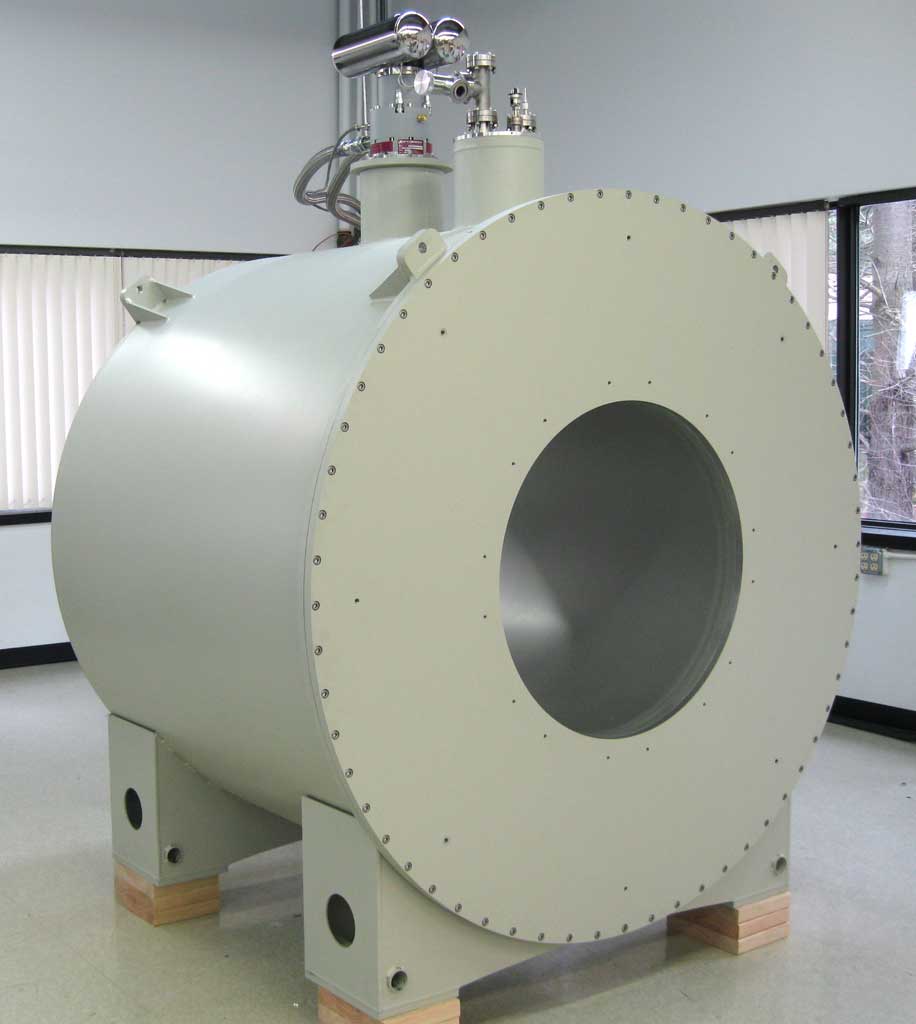

Compact Magnet for Head or Whole-Body MRI

Center Field: 1.5 T

Bore Diameter: 720 mm

Bore Length: 125 mm

End to Center: 60 cm

Homogeneity: 3 ppm pk-pk over 27 cm DSV
Drift: < 0.1 ppm/hour
5 gauss line: Axial < 280 cm, Radial < 220 cm
Cryostat OD: 160 cm
Minimum Height: 195 cm

Magnet Weight: 1800 kg

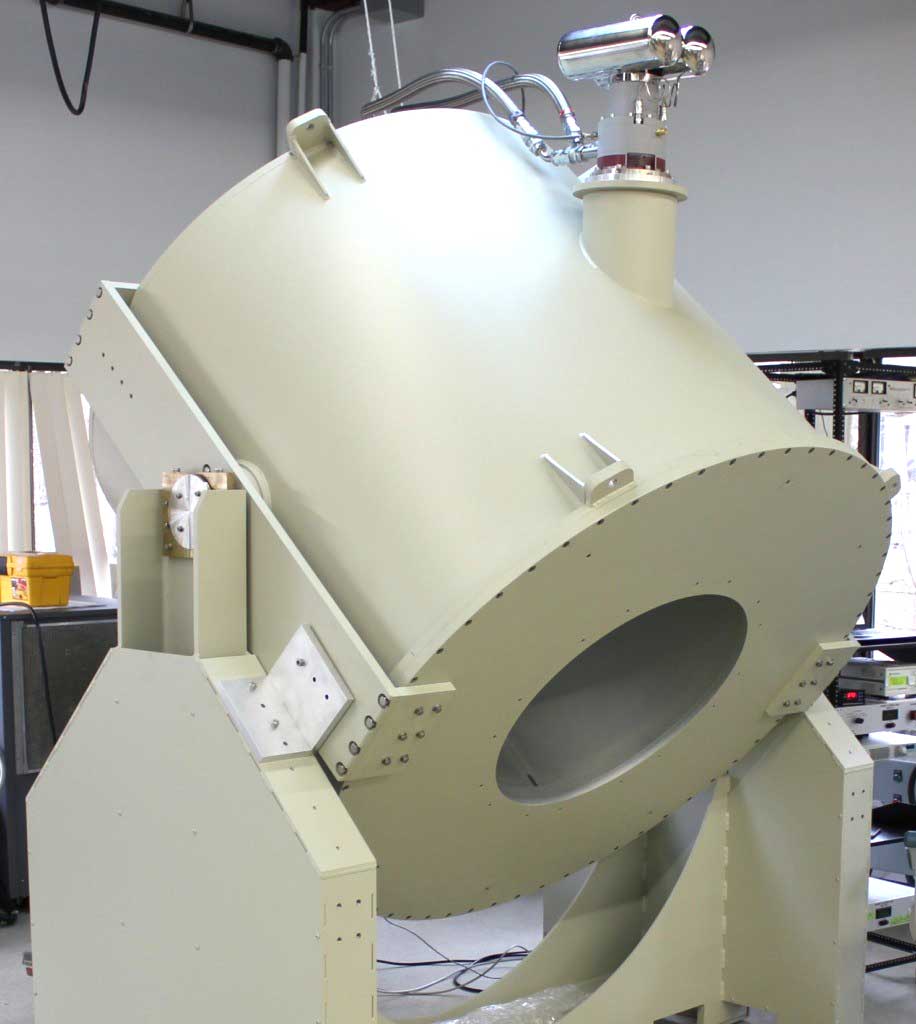

Rotatable Head Scanner for Seated Patient

Center Field: 1.5 T

Bore Diameter: 720 mm

Bore Length: 125 mm

End to Center: 60 cm

Homogeneity: 3 ppm pk-pk over 30 cm DSV
Drift: < 0.1 ppm/hour
5 gauss line: Axial < 340 cm Radial < 250 cm

Cryostat OD: 174cm

Minimum Height: 230 cm

Magnet Weight: 1800 kg
