NMR Magnets
400 MHz Magnets
-
100% Cryogen-Free 9.4T LTS
magnets for NMR applications - Magnet only on when needed
- Remote charge/discharge
- High homogeneity, high stability
PERSISTENT MODE | ACTIVELY SHIELDED | GREEN OPERATION
Introducing Cryogen-Free
NMR Magnets from
Superconducting Systems (SSI)

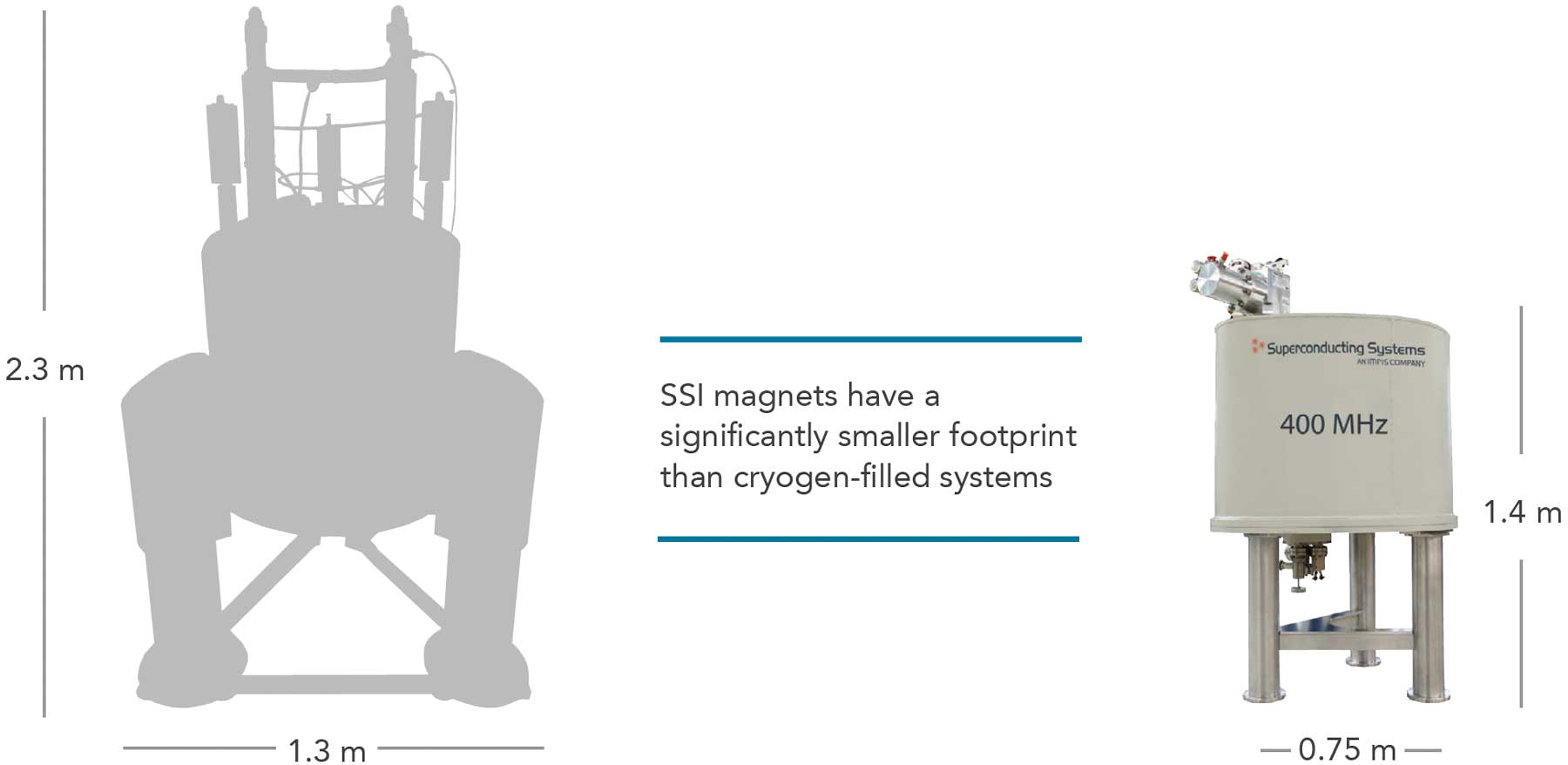

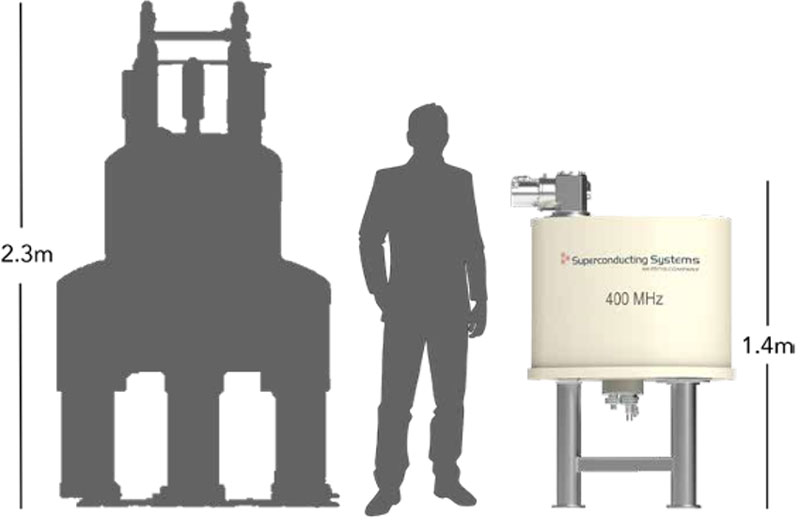

Superconducting Systems 400MHz
magnets have an ultra compact
footprint and are available in wide or standard bore. This exciting new technology achieves high homogeneity and high stability 9.4T fields without ever using a liquid cryogen. No cryogens for installation, no cryogens for operation. This product will enable NMR without complications from supply chains of cryogens.
Stability

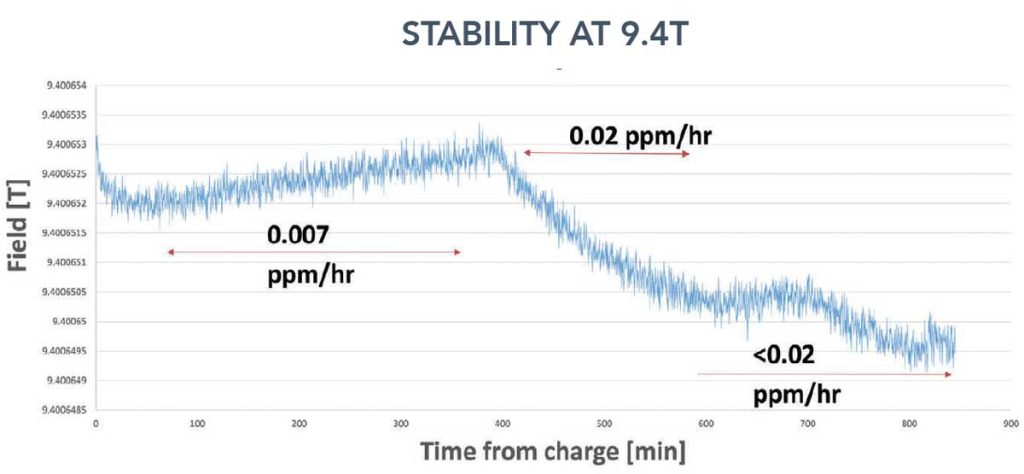

Stability of a 9.4T-89 magnet measured over a 12-hour period following a charge to full field

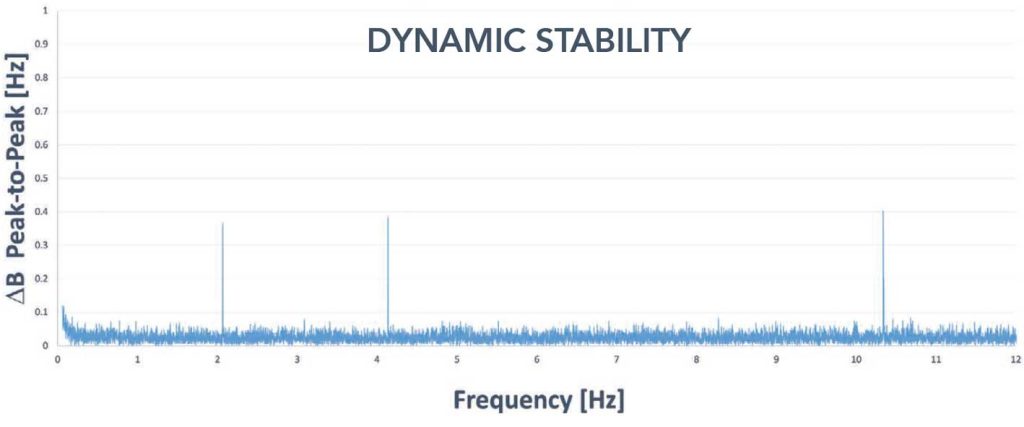

Fourier Spectrum of field data
collected over a 7-minute
period for a 9.4T-89 magnet
400 MHz Cryogen-Free Magnets
A New Freedom in NMR Spectroscopy
- No helium, no nitrogen ever
- No more fears of catastrophic magnet quench
- No suffocation hazards from rapidly expanding cryogens
- No worrying about cryogen delivery
- No room size restrictions, no oxygen sensors needed
- No refills = no interruptions
Green
- Traditional magnets continuouslywaste a scarce resource of helium
- SSI magnets use electricity to achieve the same field strength
- SSI magnets can powerdown when not in use
